HOME　＞　PRODUCTS　＞　【Impact Socket】OS-3 3/8"(Sq9.52mm drive) Deep Sockets

Impact Socket

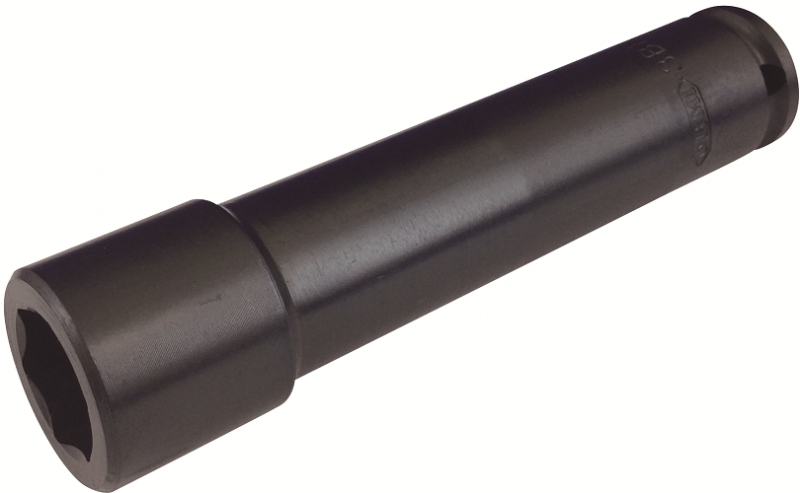

OS-3 3/8"(Sq9.52mm drive) Deep Sockets

Code Order No. Shape H
(mm)		 L2
(mm)		 D1
(mm)		 D3
(mm)		 D2
(mm)		 L1
(mm)		 Weight
(g)
00010542 OS-3B H8x55 DE
 A 8 4.5 13 6 20 55 66
00010543 OS-3B H8x75 DE
 A 8 4.5 13 6 20 75 81
00010544 OS-3B H8x100 DE
 A 8 4.5 13 6 20 100 101
00010545 OS-3B H10x55 DE
 A 10 5 16.5 7 20 55 81
00010546 OS-3B H10x75 DE
 A 10 5 16.5 7 20 75 108
00010547 OS-3B H10x100 DE
 A 10 5 16.5 7 20 100 140
00010548 OS-3B H12x55 DE
 B 12 6 20 9 20 55 100
00010549 OS-3B H12x75 DE
 B 12 6 20 9 20 75 139
00010550 OS-3B H12x100 DE
 B 12 6 20 9 20 100 183
00010551 OS-3B H13x55 DE
 C 13 6 21 10 20 55 93
00010552 OS-3B H13x75 DE
 C 13 6 21 10 20 75 130
00010553 OS-3B H13x100 DE
 C 13 6 21 10 20 100 176
00010554 OS-3B H14x55 DE
 C 14 7 23 11 20 55 104
00010555 OS-3B H14x75 DE
 C 14 7 23 11 20 75 136
00010556 OS-3B H14x100 DE
 C 14 7 23 11 20 100 182
00010557 OS-3B H15x55 DE
 C 15 7 23 12 20 55 90
00010558 OS-3B H15x75 DE
 C 15 7 23 12 20 75 122
00010559 OS-3B H15x100 DE
 C 15 7 23 12 20 100 161
00010560 OS-3B H17x55 DE
 C 17 8.5 26 13 20 55 102
00010561 OS-3B H17x75 DE
 C 17 8.5 26 13 20 75 128
00010562 OS-3B H17x100 DE
 C 17 8.5 26 13 20 100 162
00010563 OS-3B H19x55 DE
 C 19 10 30 15 20 55 110
00010564 OS-3B H19x75 DE
 C 19 10 30 15 20 75 130
00010565 OS-3B H19x100 DE
 C 19 10 30 15 20 100 161
